Wind Tunnel

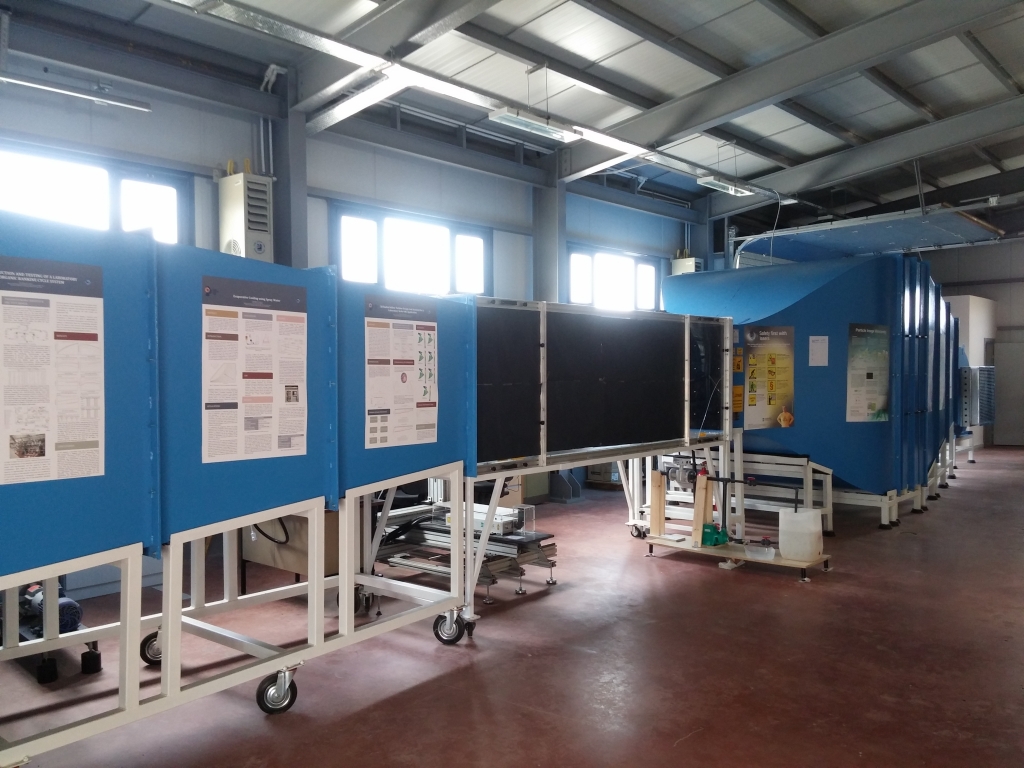

The BURET Wind Tunnel is a blow-down type, low-speed wind tunnel located at BURET Laboratory in the Saritepe Campus of Bogazici University. The main application of this wind tunnel is performing experimental tests related to evaporative cooling. Also, this facility has the capability to be used in other experimental research with some alterations in instrumentation.



TypeBlow Down
Speed Range0.2 m/s - 10 m/s
Test Section Dimensions1m x 1m x 3.5 m length
Blower  TypeCentrifugal
Electric Motor RatingUp to 1475 rpm, 22 kW
Contraction Area Ratio6.25

The BURET Wind Tunnel is equipped to make pressure, velocity, humidity and temperature measurements in test section. Moreover, a data acquisition system is available for collecting and processing data and sending them to a PC.



Sensor List
E+E75VTB Hot Film Anemometer
Magnasense II Differential Pressure Transmitters
Ordel Humidity and Temperature Transmitters
Elmko Insert Type Thermocouples



Standard Particle image velocimetry system (PIV) is another equipment in BURET Laboratory useful for research and diagnostics into flow, turbulence, and spray atomization.



Laser Repetition Rate 0-15 Hz
Laser Output Energy at 532nm135 mJ
Camera fps at full resolution21
Camera Sensor Resolution3312 pixels by 2488 pixels
Camera Interframe time 200 ns
